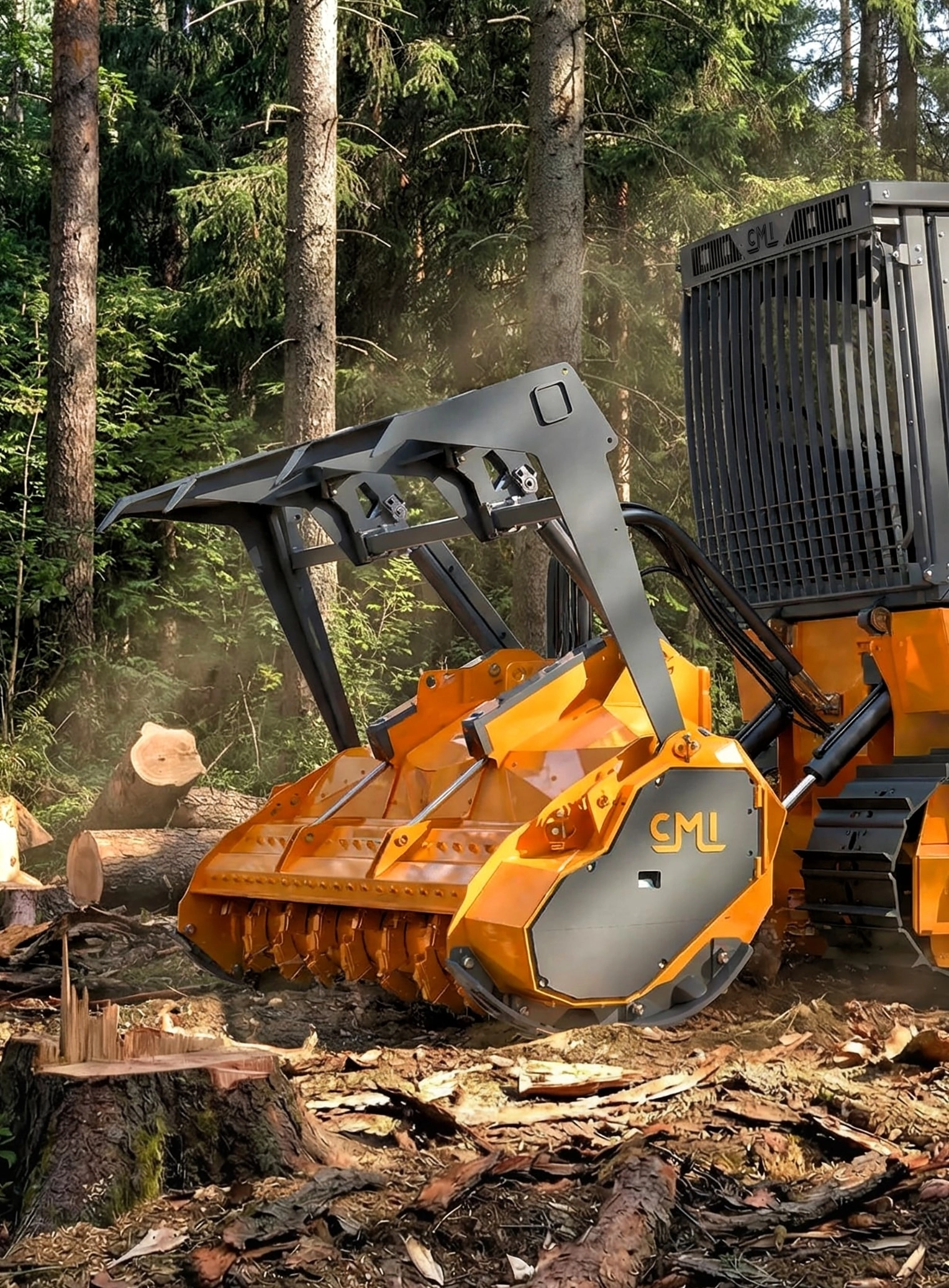

M400-250
The perfect pairing for our C400 carrier
Key Features
- Body built in high strength steel with special design in the front to improve the material entrance.
- 4 front protection chain curtains, modular and replaceable.
- Hydraulic cover to facilitate the entry of the material, with replaceable counterblades.
- Sidestep system on body sides.
- Adjustable skids (2 positions).
- Rotor with replaceable shafts and fixed hammers with helical disposition.
- Hydraulic structure (standard) or high reinforced structure with gratings (optional).
Specifications
Technical Features
- WORKING WIDTH
- 98.4 in / 250 cm
- TOTAL WIDTH
- 115.75 in / 294 cm
- ROTOR'S CUTTING DIAMETER
- 22.64 in / 575 mm
- COUNTERBLADES
- 4 replaceable rows
- SKIDS
- Bolted adjustable (2 positions)
- WEIGHT
- 8 267 lb / 3 750 kg
NUMBER OF HAMMERS
- STANDARD F19 + F20
- 58 + 2
- OPTION F25 + F20
- 58 + 2
- OPTION F45 + F20
- 58 + 2
- OPTION F23
- 60
