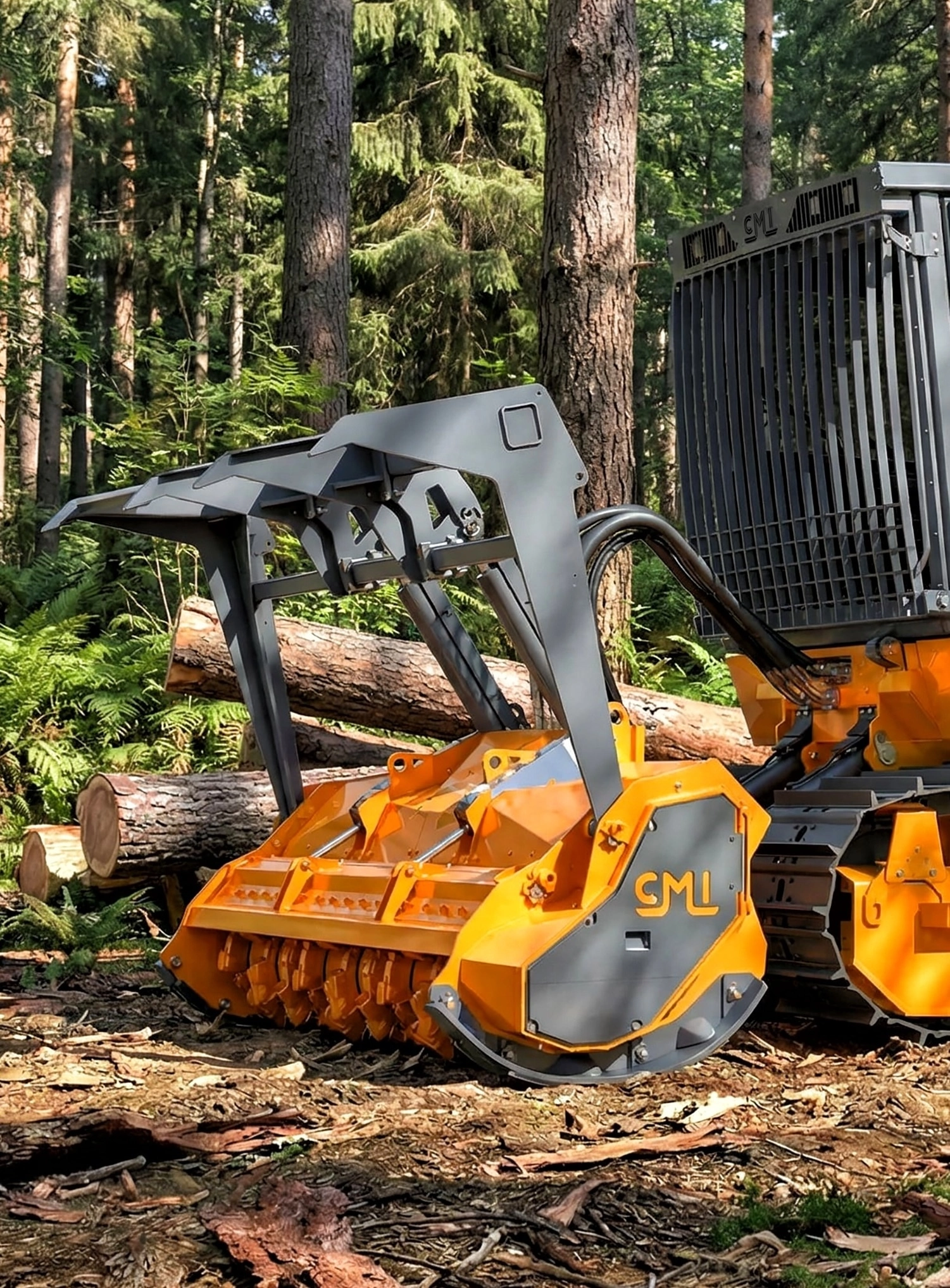

M300-225
The most power for our C300 carrier
Key Features
- 4 front protection chain curtains, modular and replaceable.
- Adjustable skids (2 positions).
- Hydraulic pushing frame.
- Transmission with 1 reinforced synchronous timing belt.
- Side extension device between motor and pulleys with ESB system.
- Hydraulic piston motor Sauer Danfoss with variable displacement up to 110 cc.
- Hydraulic block included.
Specifications
Technical Features
- WORKING WIDTH
- 88.58 in / 225 cm
- TOTAL WIDTH
- 105.9 in / 269 cm
- ROTOR'S CUTTING DIAMETER
- 20.08 in / 510 mm
- COUNTERBLADES
- 4 replaceable rows
- SKIDS
- Bolted adjustable (2 positions)
- WEIGHT
- 6 173 lb / 2 800 kg
NUMBER OF HAMMERS
- STANDARD F19 + F20
- 54+2
- OPTION F25 + F20
- 54+2
- OPTION F45 + F20
- 54+2
- OPTION F23
- 56
