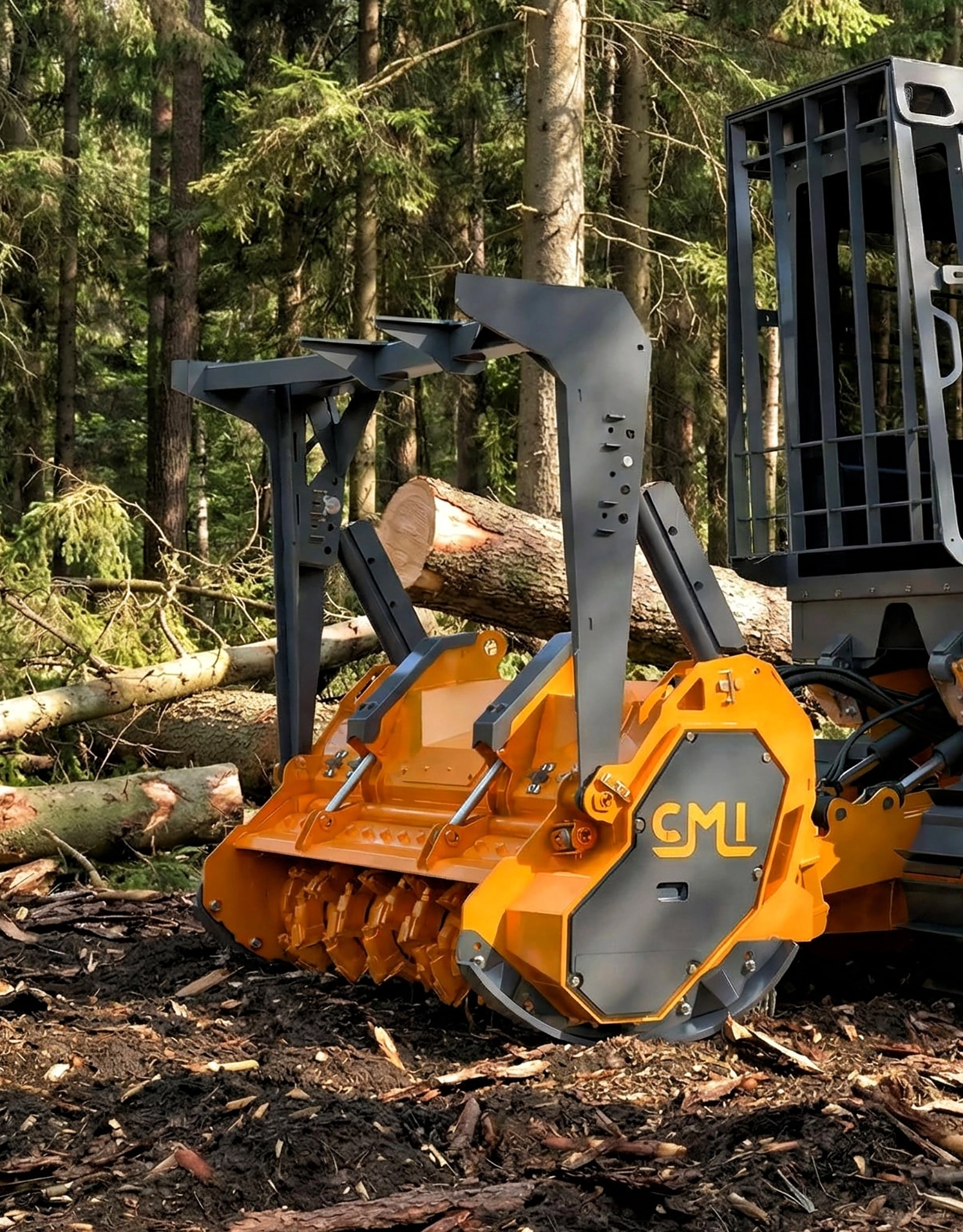

M175-180
The ideal mulching head for our C175 carrier
Key Features
- 4 front protection chain curtains, modular and replaceable.
- Adjustable skids (2 positions).
- Hydraulic pushing frame.
- Transmission with 1 reinforced synchronous timing belt.
- Side extension device between motor and pulleys with ESB system.
- Hydraulic piston motor Sauer Danfoss with variable displacement up to 110 cc.
- Hydraulic block included.
Specifications
Technical Features
- WORKING WIDTH
- 1.80 m / 39.3 in
- TOTAL WIDTH
- 2.22 m / 87.4 in
- ROTOR'S CUTTING DIAMETER
- 415 mm / 16.3 in
- COUNTERBLADES
- 4 replaceable rows
- SKIDS
- Bolted adjustable (2 positions)
- WEIGHT
- 1 760 kg / 3 880 lbs
- BLADES
- F18 + F20
- NUMBER OF BLADES
- 42 + 2
