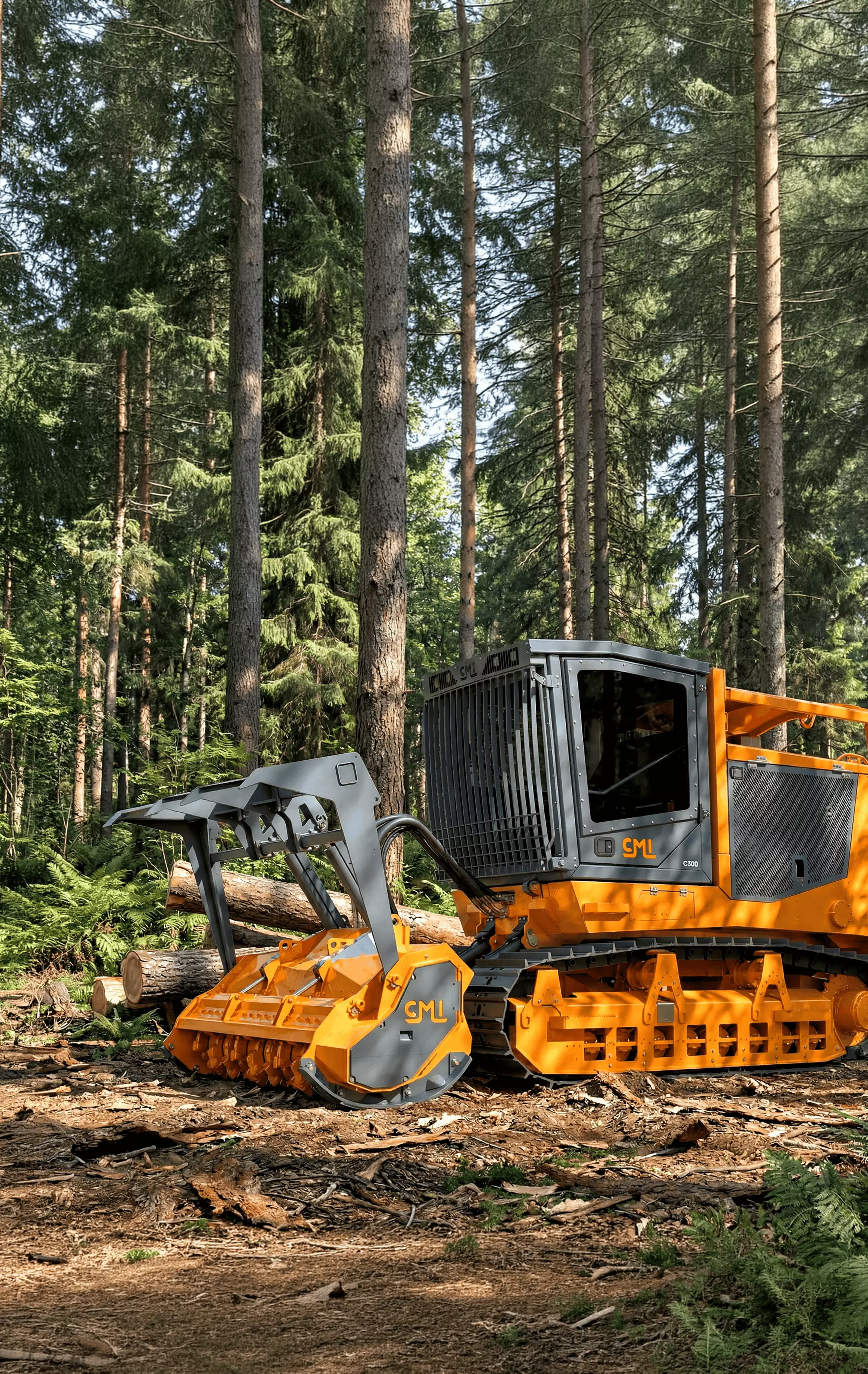

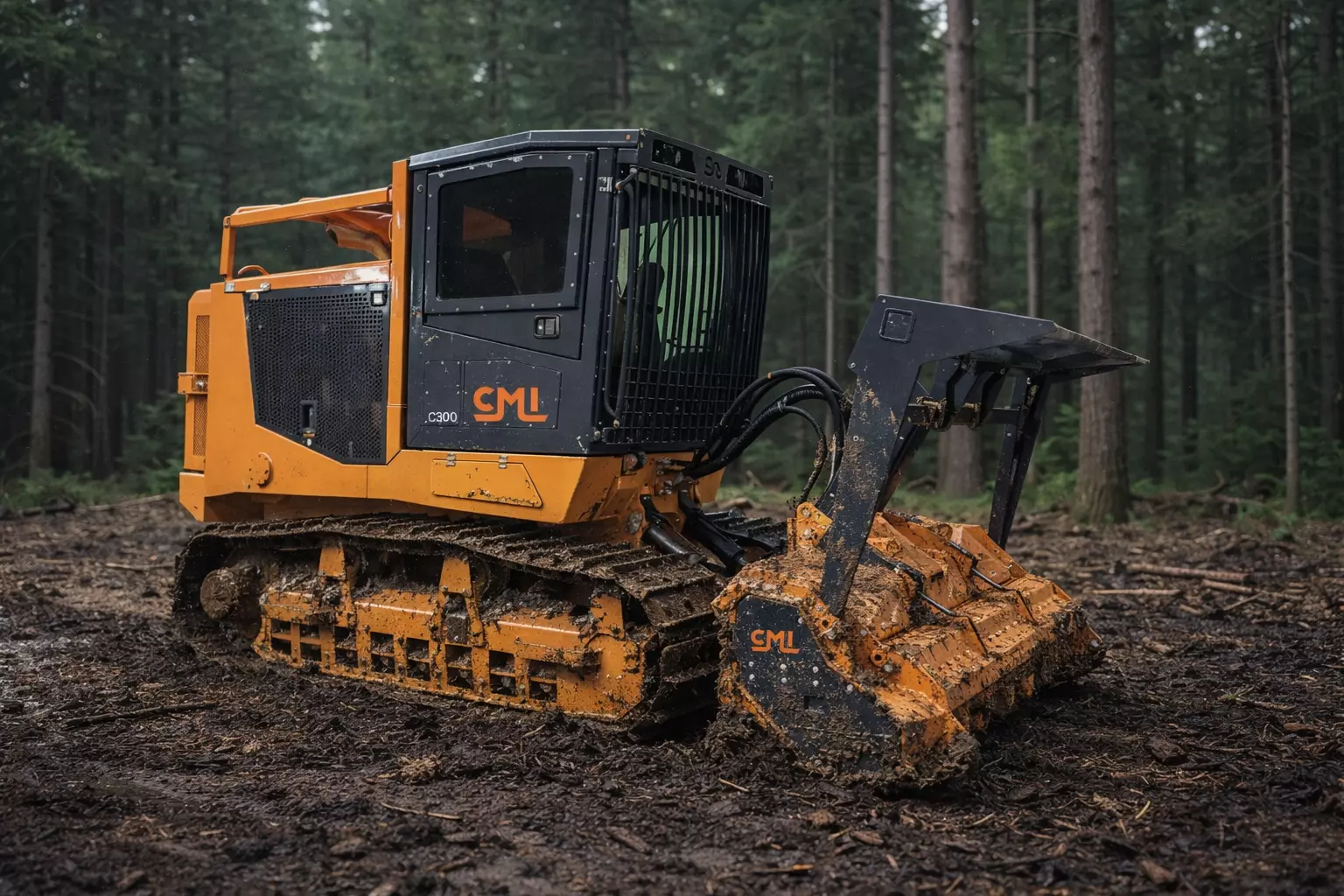

C300
Balanced power on a legendary frame.
- Operating Weight
- 30 953 lb (14 039 kg)
- Hydraulic Flow
- 10 Microns
- Engine Power
- 285 HP Class
Built for the long haul.
Balanced and powerful, the C300 carries forward the same frame architecture that made the C250 Hurricane a benchmark in pipeline, forestry, corridor work, and other demanding applications. Lightweight steel construction, refined chassis geometry and careful weight distribution deliver durability, stability and low-impact performance on steep slopes and soft terrain. It stays stable under load, resists long-term structural fatigue and maintains performance through years of continuous operation.
KEY BENEFITS
- Lowest ground pressure in its class
- Proven frame built for long-term durability
- Superior traction on steep slopes and soft terrain
- Lightweight design for easier transport and maneuverability
Continuous power. Controlled delivery.
At the core of the C300 is a 284 HP Cummins B6.7 engine, paired with a hydraulic system designed for consistent, controlled output. Power is applied efficiently through the mulching head, maintaining torque under load without unnecessary fuel consumption. At 25,110 lb (with 24” pads), the platform delivers strong power-to-weight performance that translates directly into steady, productive mulching.
Specifications
Engine
- MANUFACTURER & MODEL
- CUMMINS B6.7 Tier 4 Stage V
- CYLINDERS & DISPLACEMENT
- 6 cylinders / 408 CID (6.7 L)
- PEAK POWER AT 1800 RPM (SAE J1995)
- 284 hp (212 kW)
- NET PEAK TORQUE
- 996 ft·lbf (1 350 Nm)
- FAN
- Automatic variable pitch, reversible
Hydraulics
- FILTRATION
- 10 Microns
- PUMP SYSTEM
- 4
Electrical
- VOLTAGE
- 12 Volts
- STANDARD LIGHT
- 8 LED type (4 Front, 2 Side, 2 Rear)
Top Speed
- Motor
- Two speed hydraulic motors
- Speed
- 3.7 mph (5.95 km/h)
Serviceability
- FUEL TANK
- 95 gal US (361 L)
- HYDRAULIC RESERVOIR
- 43 gal US (163 L)
- COOLING SYSTEM
- 9 gal US (35 L)
Undercarriage & ground pressure
- CHAIN TYPE & SIZE
- D4 seal and grease
- TRACK SHOE & ROLLERS
- 24 in (610 mm) single grouser with mud hole, dozer type rollers. 30 in (760 mm) pads optional.
- GROUND PRESSURE (24-IN PADS)
- 4.1 psi (0.29 kg/cm2)
- GROUND PRESSURE (30-IN PADS)
- 3.35 psi (0.24 kg/cm2)
Dimensions - Carrier only
- LENGTH
- 197 in (500 cm)
- GROUND CLEARANCE
- 24 in (61 cm)
- OVERALL HEIGHT
- 124 in (314 cm)
- WIDTH (24-IN PADS)
- 83 in (211 cm)
- WIDTH (30-IN PADS)
- 89 in (226 cm)
- WEIGHT (24-IN PADS)
- 25 111 lb (11 389 kg)
- WEIGHT (30-IN PADS)
- 25 663 lb (11 641 kg)
Dimensions - C300 with M300-210 Attachment
- OVERALL LENGTH
- 259 in (659 cm)
- GROUND CLEARANCE
- 24 in (61 cm)
- OVERALL HEIGHT
- 124 in (314 cm)
- WIDTH (24-IN PADS)
- 100 in (254 cm)
- WIDTH (30-IN PADS)
- 100 in (254 cm)
- WEIGHT (24-IN PADS)
- 30 953 lb (14 039 kg)
- WEIGHT (30-IN PADS)
- 31 505 lb (14 291 kg)
Dimensions - C300 with M300-225 Attachment
- OVERALL LENGTH
- 259 in (659 cm)
- GROUND CLEARANCE
- 24 in (61 cm)
- OVERALL HEIGHT
- 124 in (314 cm)
- WIDTH (24-IN PADS)
- 106 in (269 cm)
- WIDTH (30-IN PADS)
- 106 in (269 cm)
- WEIGHT (24-IN PADS)
- 31 284 lb (14 189 kg)
- WEIGHT (30-IN PADS)
- 31 836 lb (14 441 kg)
Dimensions - C300 with S300 Attachment
- OVERALL LENGTH
- 286 in (726 cm)
- GROUND CLEARANCE
- 24 in (61 cm)
- OVERALL HEIGHT
- 111 in (281 cm)
- WIDTH (24-IN PADS)
- 83 in (211 cm)
- WIDTH (30-IN PADS)
- 89 in (227 cm)
- WEIGHT (24-IN PADS)
- 31 071 lb (14 092 kg)
- WEIGHT (30-IN PADS)
- 31 623 lb (14 344 kg)
