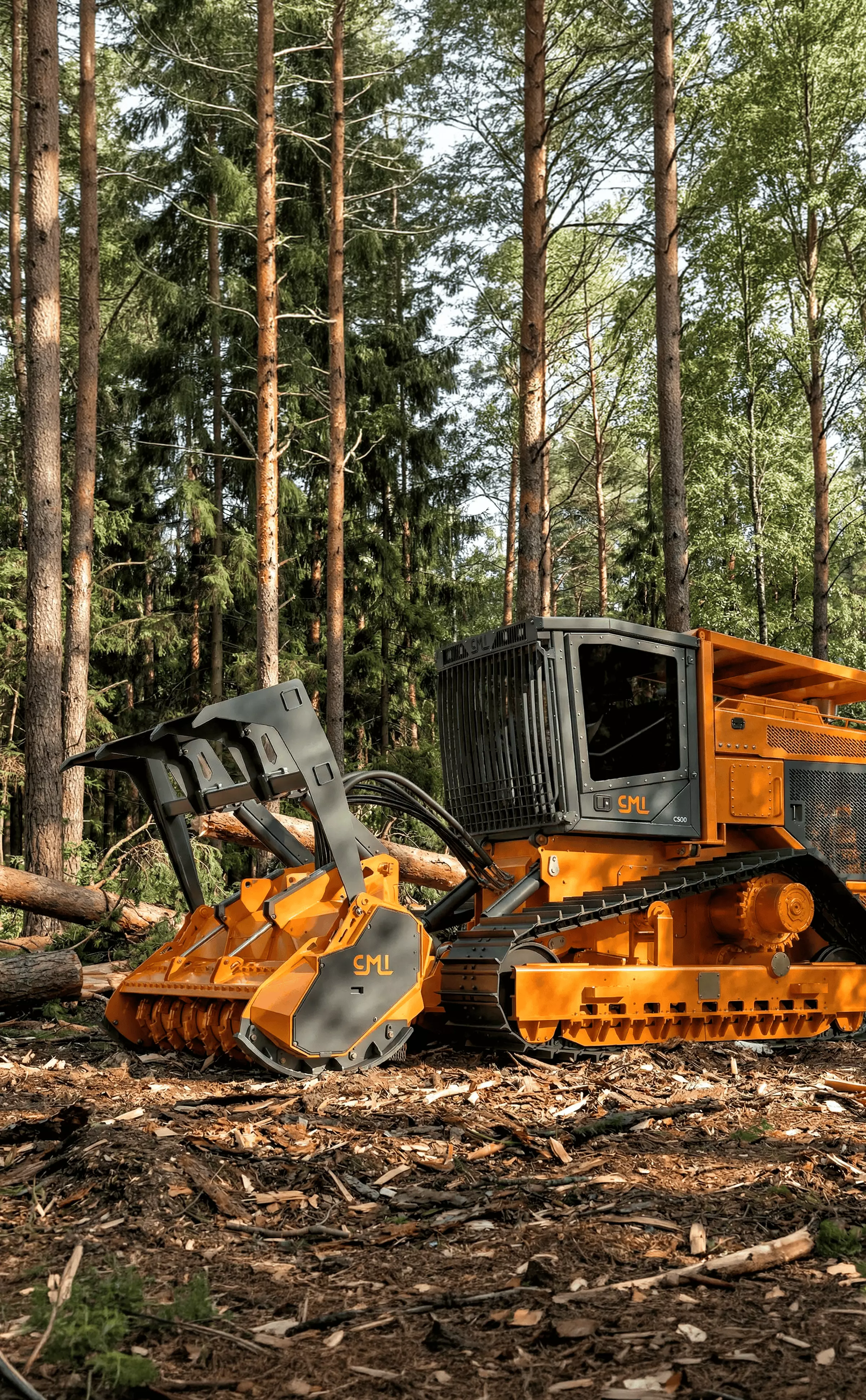

C500
Maximum power for maximum-scale jobs.
- Operating Weight
- 47,375 lb (21,488 kg)
- Hydraulic Flow
- 10 Microns
- Engine Power
- 500 HP

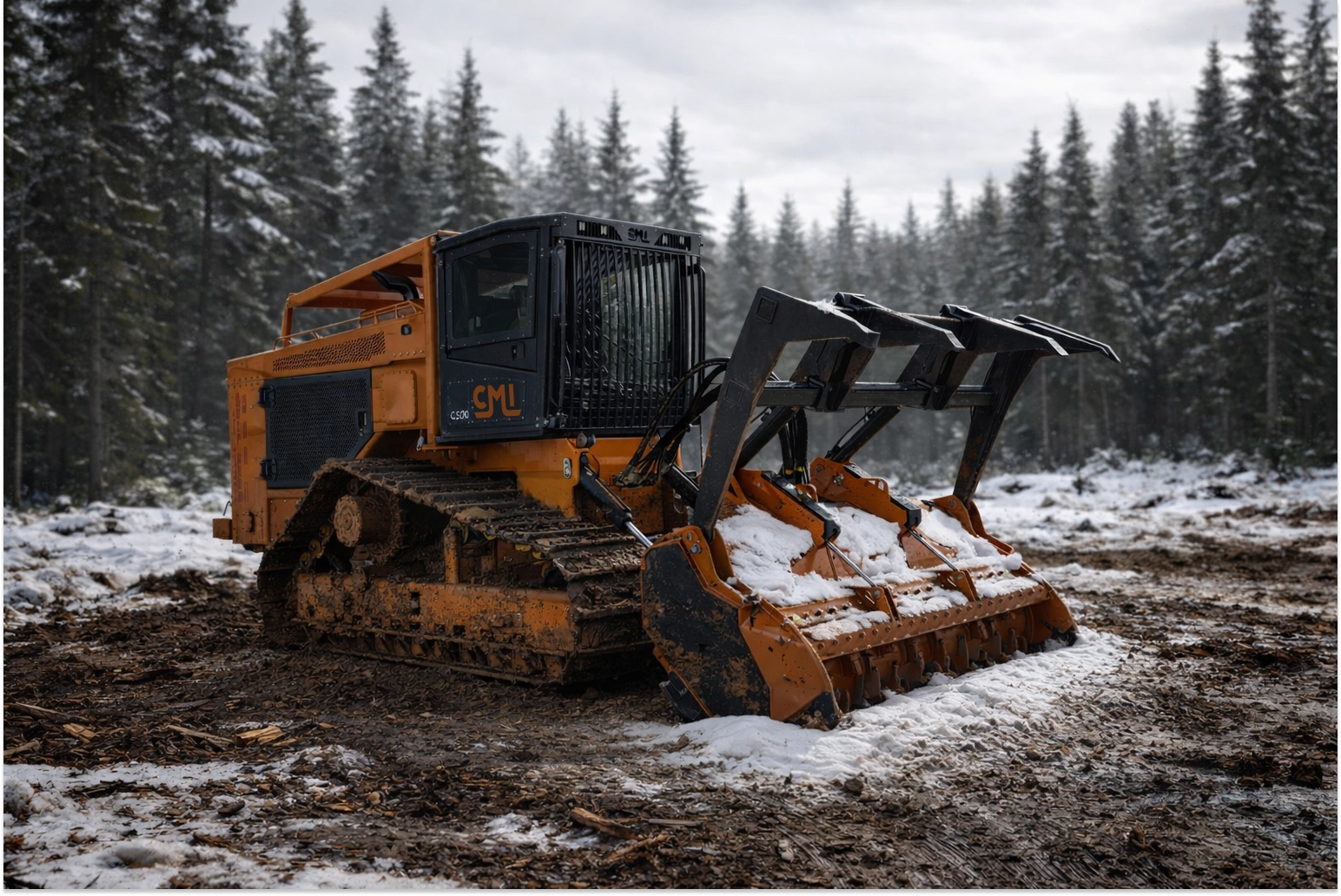

Engineered for terrain that stops other machines.
The C500 is engineered at a different scale. An oversized track frame and D-6N undercarriage form a heavy-duty foundation proven in demanding pipeline work. Its high pitch oscillation system allows the 47,375-lb platform to flex over rough ground, maintaining full track contact where other machines lose traction. The result is stability, control, and sustained production in ground conditions that immobilize lighter equipment.
KEY BENEFITS
- Full traction in the toughest terrain
- Heavy-duty undercarriage for demanding applications
- Stable on uneven ground at full operating weight
- Proven pipeline-grade track frame

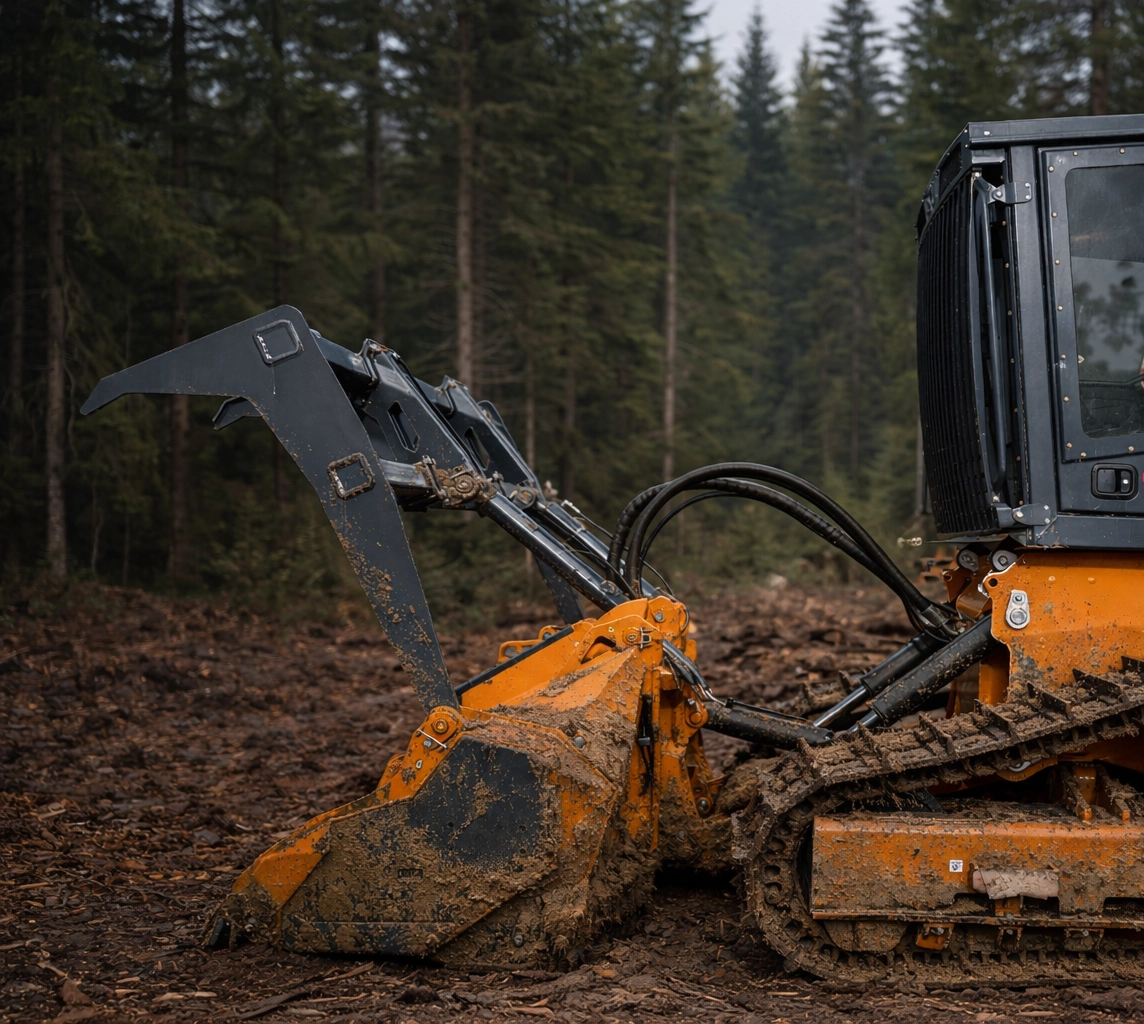

500 HP for the toughest cuts.
The C500 runs on a 500 HP Cummins X15 engine delivering 1,700 lb-ft of torque—power built for the largest clearing projects. Its hydraulic system channels that output efficiently to the head, maintaining consistent cutting force through dense timber, heavy brush, and stubborn root systems. The result is sustained production in demanding forestry, pipeline, and transmission applications where consistent output is critical to schedule and cost control.
Built for extended operation.
Large-scale operations often take place far from fuel trucks and service bays. The C500 is equipped for extended operation, with a 215-gallon fuel tank and a 102-gallon hydraulic reservoir to support long shifts between refueling and service intervals. Accessible service points and a push-button cab tilt simplify routine maintenance in the field. The platform is designed to keep working on remote projects where downtime carries significant cost.
Specifications
Engine
- MANUFACTURER & MODEL
- CUMMINS X15 TIER 4 stage V
- CYLINDERS & DISPLACEMENT
- 6 cylinders / 912 po CID (14.9 L)
- PEAK POWER AT 1800 RPM (SAE J1995)
- 500 hp (373 kW)
- NET PEAK TORQUE
- 1 700 ft·lbf (2 305 Nm)
- FAN
- Automatic variable pitch, reversible
Hydraulics
- FILTRATION
- 10 Microns
- PUMP SYSTEM
- 4
Electrical
- VOLTAGE
- 12 Volts
- STANDARD LIGHT
- 8 LED type (4 Front, 2 Side, 2 Rear)
Top Speed
- Motor
- Two speed hydraulic motors
- Speed
- Variable speed from 0 to 5.18 mph (0 to 8.34 km/h)
Serviceability
- FUEL TANK
- 213 gal US (808 L)
- HYDRAULIC RESERVOIR
- 95 gal US (360 L)
- COOLING SYSTEM
- 18 gal US (68 L)
Undercarriage & ground pressure
- CHAIN TYPE & SIZE
- Seal and Lube, D-6N with an elevated final drive design
- TRACK SHOE & ROLLERS
- Standard 30 in (762mm) single grouser with mud hole
- GROUND PRESSURE (30-IN PADS)
- 5.86 psi (0.41 kg/cm²)
Dimensions - C500 Carrier only
- LENGTH
- 239 in (607 cm)
- GROUND CLEARANCE
- 20.0625 in (51 cm)
- OVERALL HEIGHT
- 135.375 in (344 cm)
- WIDTH (30-IN PADS)
- 112 in (285 cm)
- WEIGHT (30-IN PADS)
- 47 200 lb (21 410 kg)

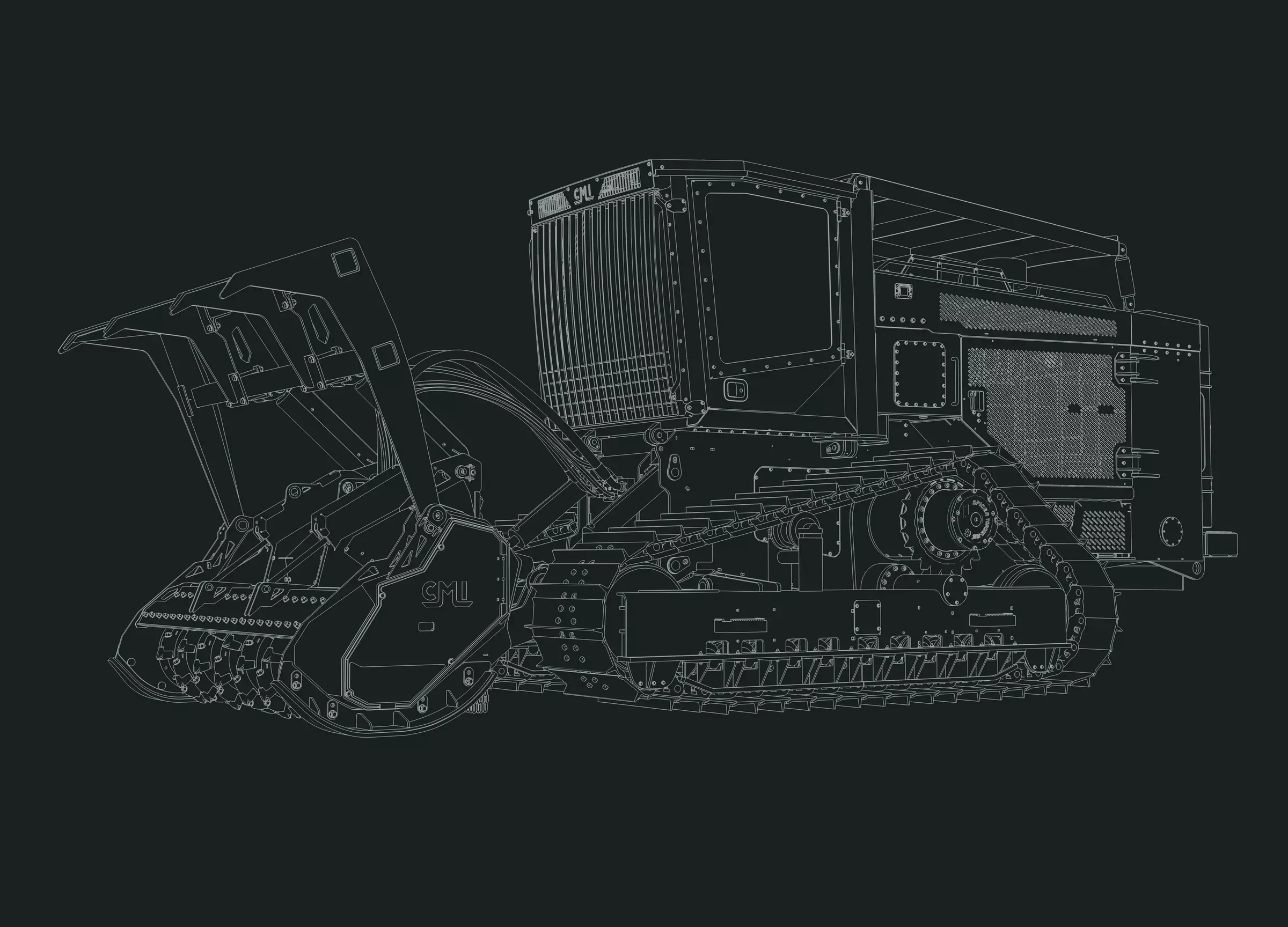

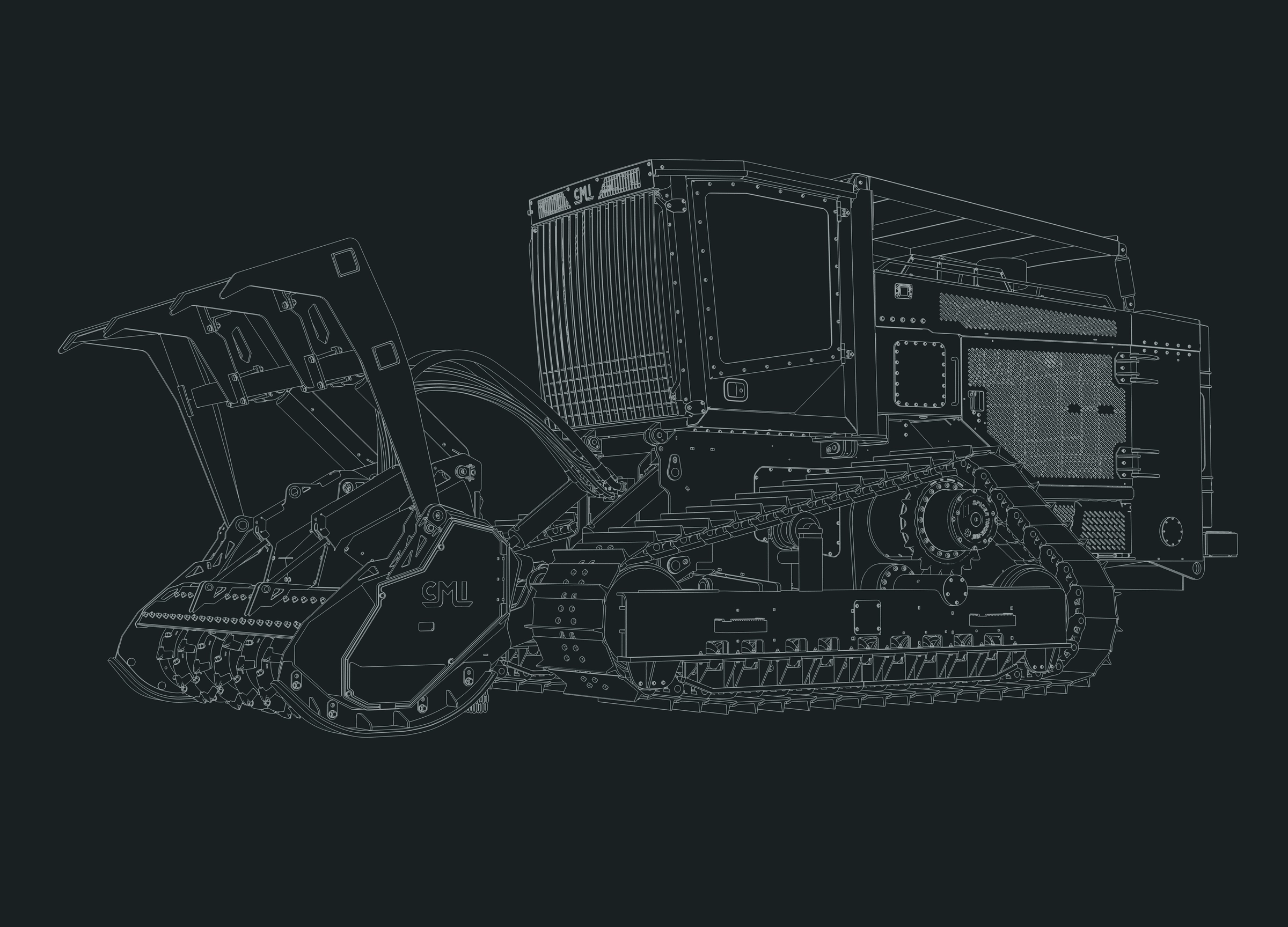

Dimensions - C500 with M500-250 Attachment
- OVERALL LENGTH
- 312.4 in (793 cm)
- GROUND CLEARANCE
- 20.0625 in (51 cm)
- OVERALL HEIGHT
- 135.375 in (344 cm)
- WIDTH (30-IN PADS)
- 118.5 in (300 cm)
- WEIGHT (30-IN PADS)
- 56 404 lb (25 585 kg)
Dimensions - C500 with S400 Attachment
- OVERALL LENGTH
- 336 in (853 cm)
- GROUND CLEARANCE
- 20.0625 in (51 cm)
- OVERALL HEIGHT
- 135.375 in (344 cm)
- WIDTH (30-IN PADS)
- 112 in (285 cm)
- WEIGHT (30-IN PADS)
- 53 308 lb (24 180 kg)
